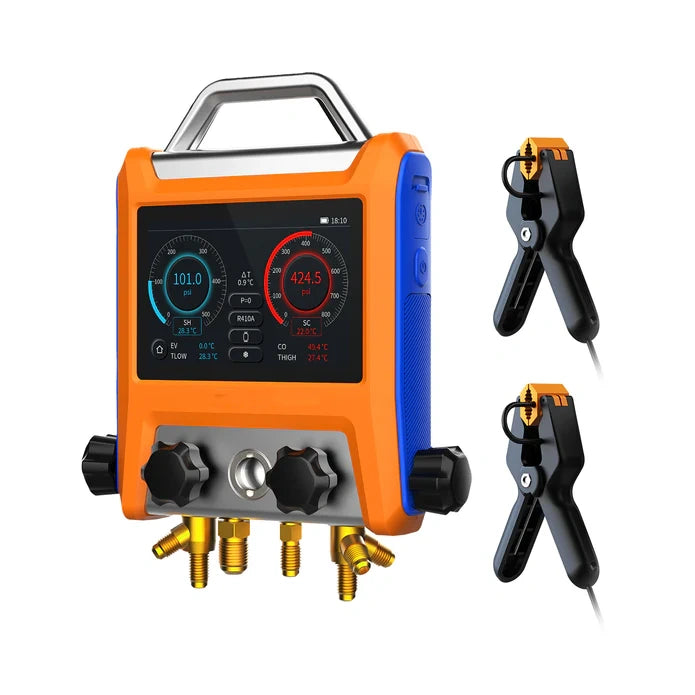

4‑Valve Digital Refrigeration Manifold – 5" Smart Touch Screen

Product Introduction

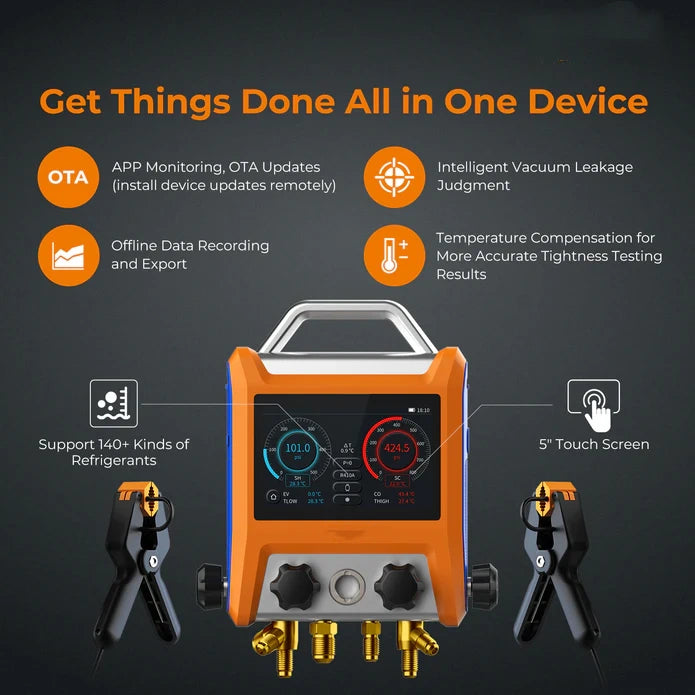

Intelligent digital manifold for HVAC/R systems. 5" smart touch screen shows pressure, vacuum, and temperature at a glance. Bluetooth app for remote monitoring and data analysis. Switch between heat and cool modes without changing hoses. Automatic superheat/subcooling calculation. Built‑in leak detection and temperature compensation.

Product Features

⚡ Fast, accurate readings

Pressure range -14.5 to 800 psi with 0.5% FS accuracy. Vacuum from 0 to 19,000 microns. Temperature probes accurate to ±0.1°C.

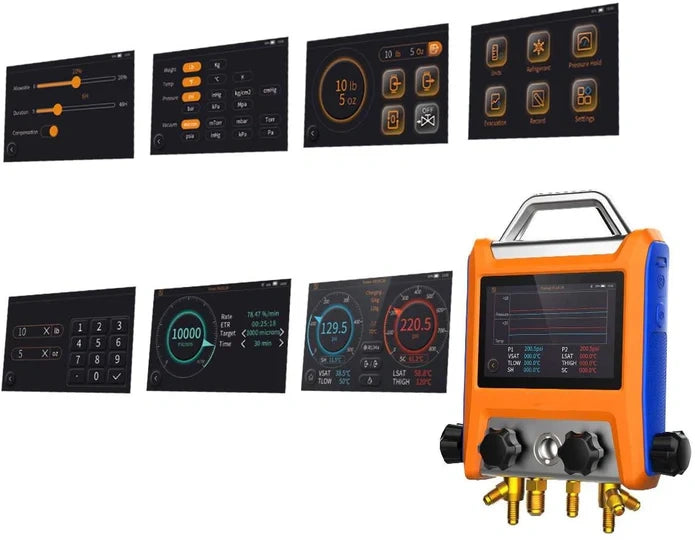

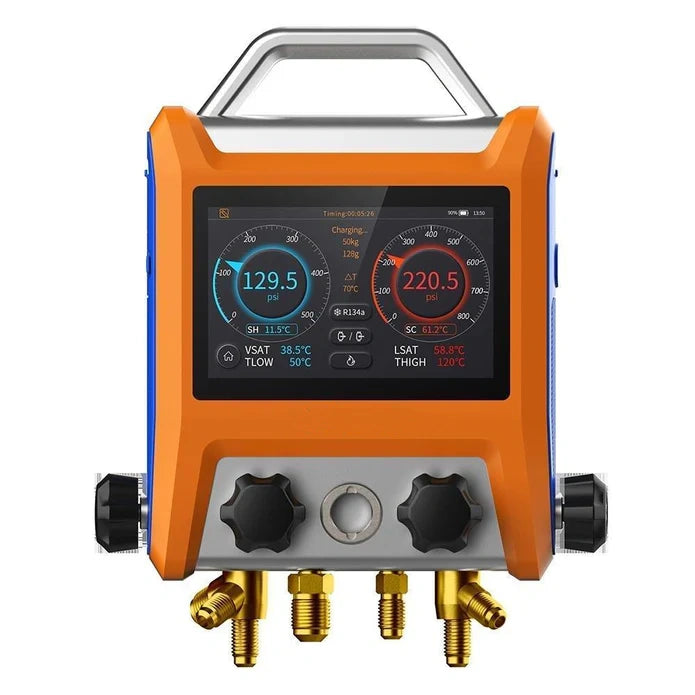

📊 5" touch screen + curve display

Clear graphs for pressure, vacuum, and temperature trends. Intuitive operation. No more manual chart lookups.

🔄 Smart HVAC functions

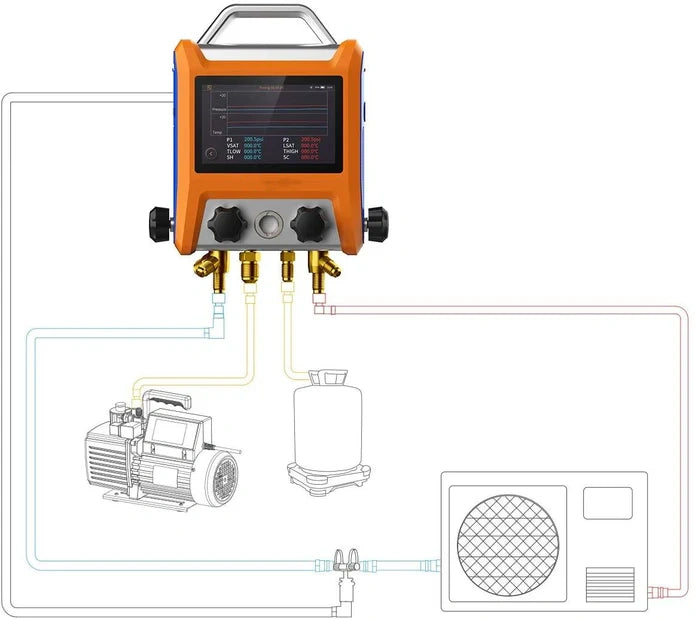

Switch heating/cooling without hose changes. Automatic superheat and subcooling for 88+ refrigerants. Monitor vacuum with leak detection and temperature‑compensated pressure holding.

📲 Bluetooth app + data logging

Connect to smartphone for real‑time monitoring from your van. Record up to 100,000 data points. Export via USB for reports.

🔧 4‑valve design

All‑in‑one tool replaces separate pressure gauges, thermometers, vacuum gauge, and data logger.

Product Specifications

• Pressure range: -14.5 ~ 800 psi (±0.5% FS)

• Vacuum range: 0 ~ 19,000 microns

• Temperature range: -40 ~ 150°C (±0.1°C)

• Refrigerants: 88+ built‑in, auto superheat/subcooling

• Display: 5" colour touch screen

• Connectivity: Bluetooth, USB data export

• Data logging: 100,000 points

• Power: USB rechargeable lithium battery

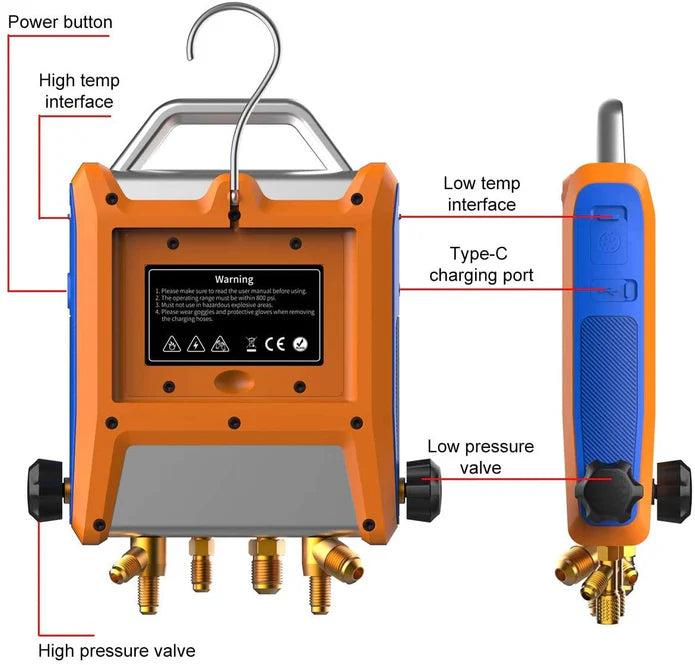

• Ports: 1/4 SAE (3 ports)

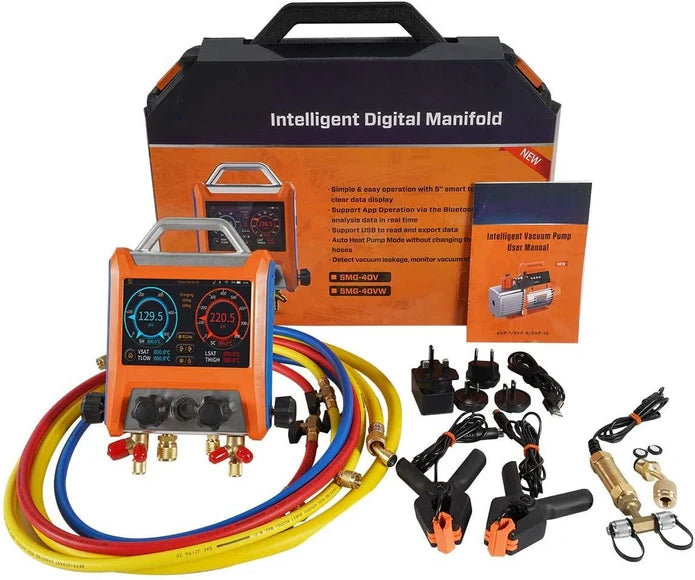

Package Includes

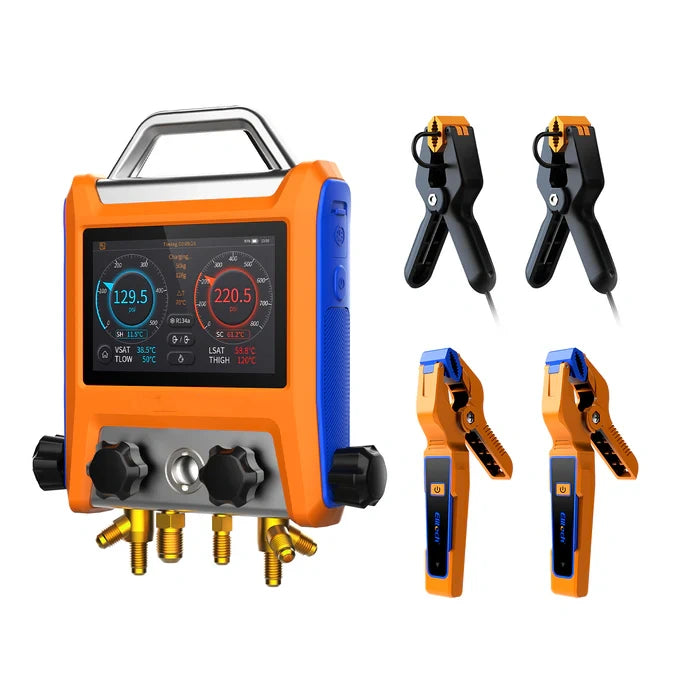

1 × Digital manifold gauge
2 × Temperature clamp probes
1 × USB charging cable
1 × Carrying case
1 × User manual

✨ Professional diagnostics, smart simplicity – step into the digital age of HVAC.
